MEDglas Wall

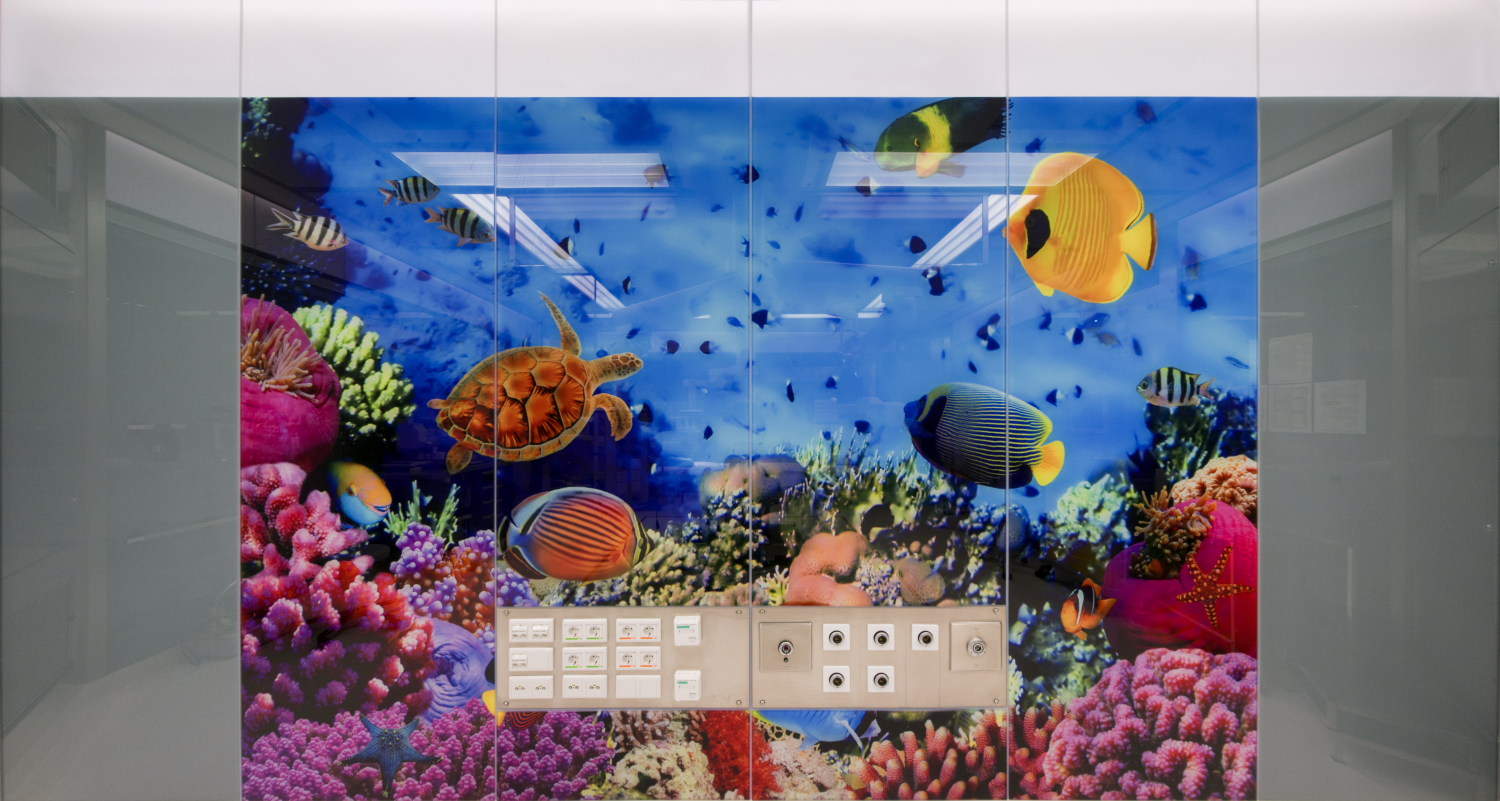

MEDIK combines glass and light to a fascinating new unity, there by creating an unique atmosphere. For example, images can be printed in fotorealistic 3D-prints behind the glass panes. Of course it is possible to choose every RAL-color for the walls. The result: An astonishing feeling of depth of the room that will blow your mind again and again. In combination with our lighting concept, both hospital staff and patients benefit from higher well-being and concentration.

  • General
  • Security
  • Installation
  • Studwork
  • Large variety of installation possibilites, depending on desired options
  • Color of the wall is freely chooseable
  • high-resolution print directly onto the glass possible
  • optionally with integrated wall heating and lighting concept (MEDglas Light)
  • Either installed on studwork or existing wall
  • MEDIK substructure fulfills the highest demands on quality
  • Substructure is following all norms of fire-, radiation- and noise protection
  • optional installation of further modules for fire-, radiation- and noise protection
  • Due to security and quality reasons only 10mm toughened and tempered single-pane security glass.
  • Modular glass panes are screwed onto substructe for simple mounting and dismounting
  • Installation in mini-maxi distance of 30mm (with light: 100mm) - 150mm from the wall - no abandonment of wall installations
  • Weight of the glass panes borne to the floor: use of floor profiles made of canted steel (1,5mm)
  • Installation of profiles on finished floor; adjustable to allow easy leveling of the walls
  • Special hanging prevents the wall from swinging and secures higher stability
  • Wall- and ceiling elements can be sealed completely
  • Ceiling profile made of anozid aluminium, glass wall is sealed completely in the upper area
  • Problem-free installation of power plugs
  • Substructure strengthened on door profiles to ease the installation of door drives
  • space-saving alternative: glass wall systems can be glued onto substructure. This allows a wall thickness of 25mm without having to abandon the wall heating or lighting concept
  • Self-supporting studwork on aluminiumbasis allows free partitioning of the space as well as lower wall thickness in comparison to installation on drywall
  • The room layout can be changed later
  • For the installation onto the studwork a frame is glued onto the back of the glass panes and just hanged into the studwork and sealed with silicone on site
  • The studwork is connected to the floor with a skirting so hygiene is secured everytime
  • Modules for fire- or radiation protection can be installed
  • Space between studs can be used for technical installation (like gas-, electricity-, network- or water pipes)

Have a look by yourself and see how easy the installation on our new studwork is!
